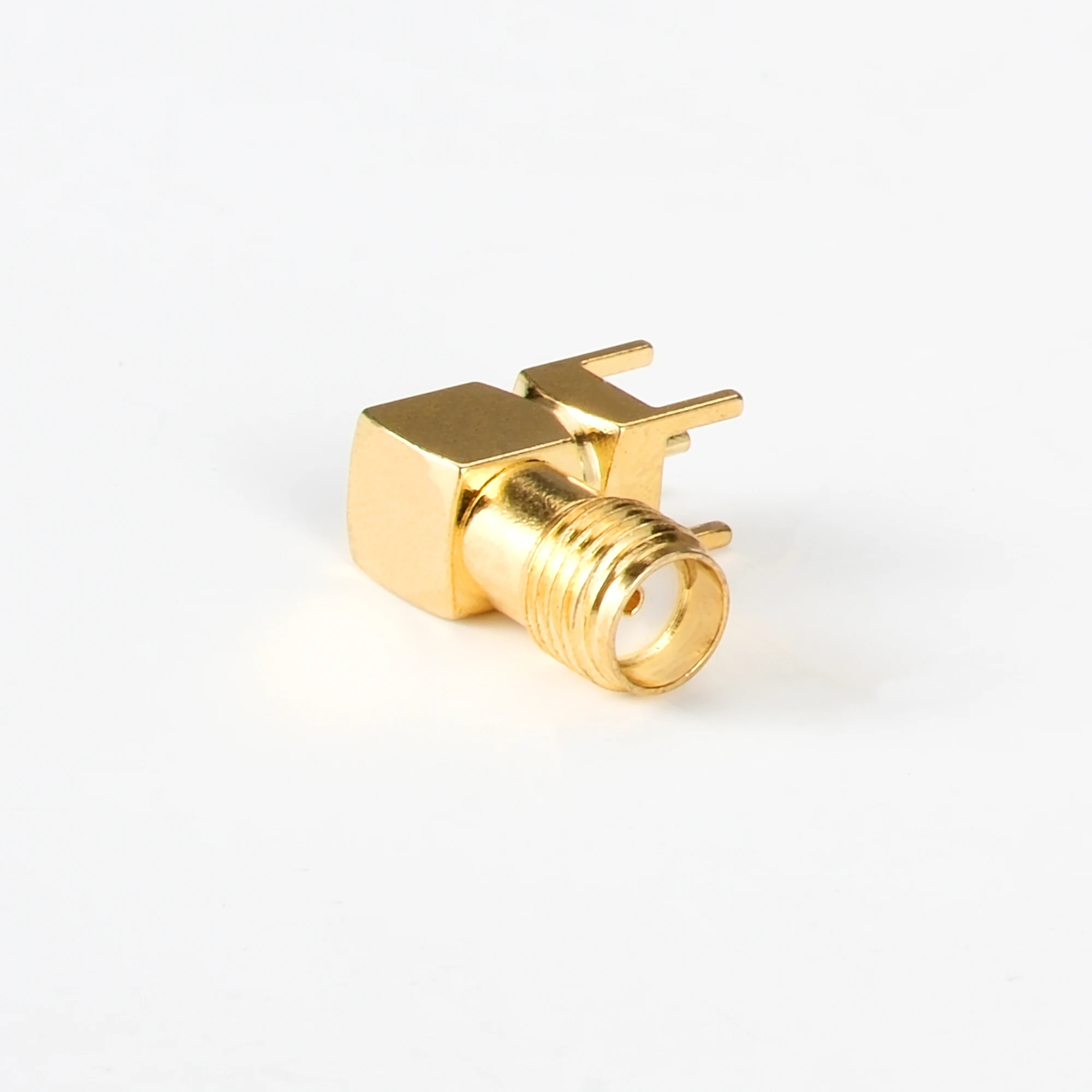

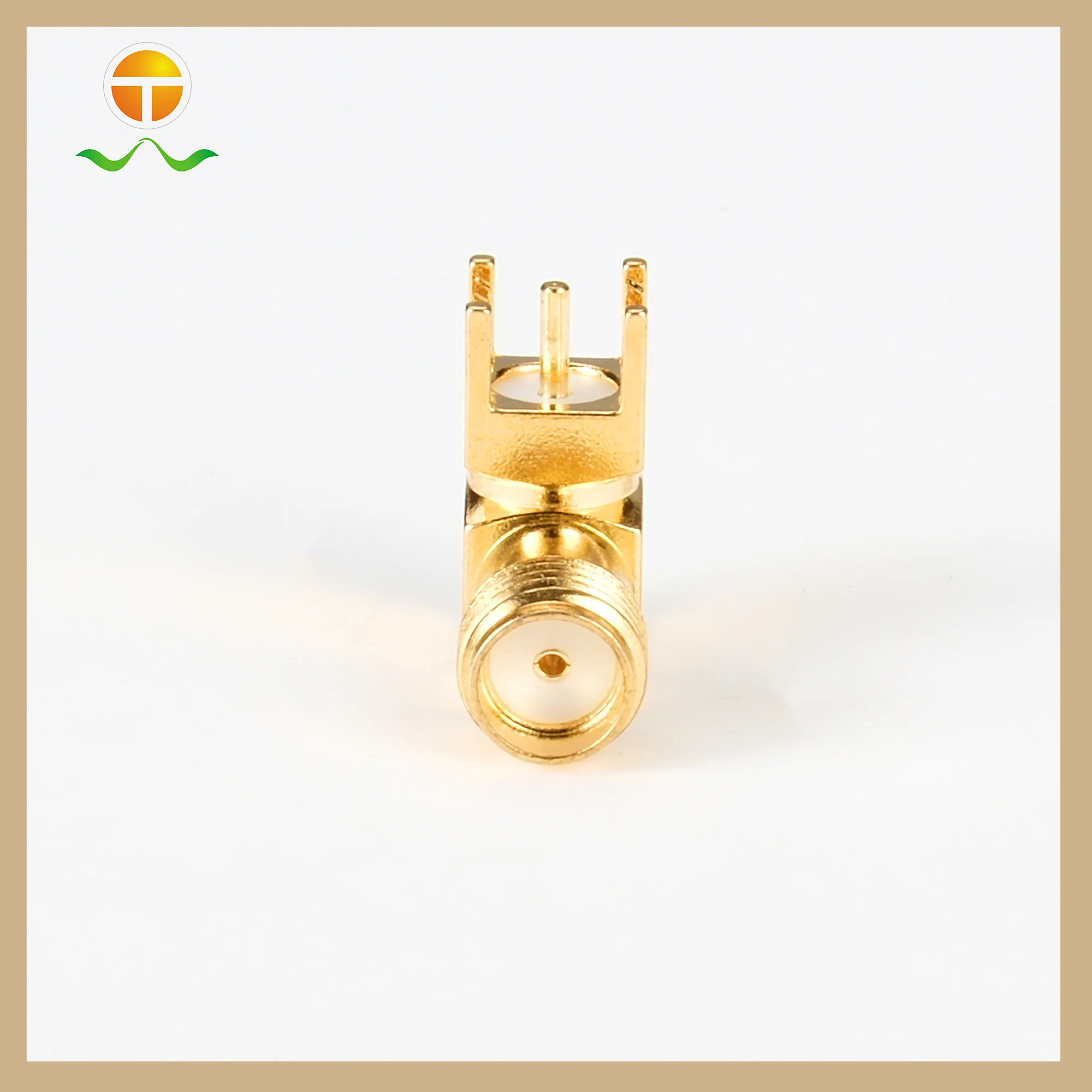

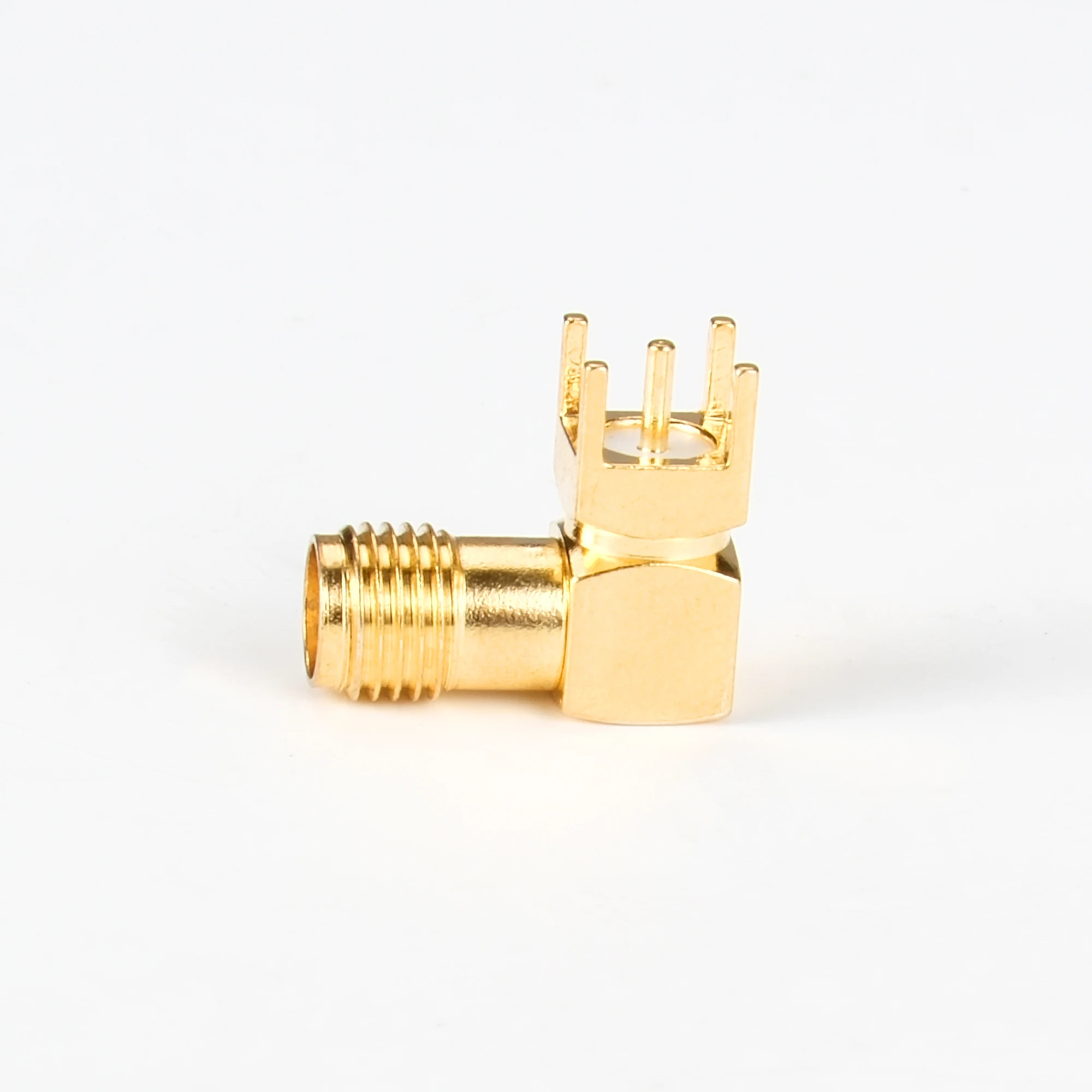

50 OHM Female PCB Mount Connector PCB Mounting Wifi Antenna Connector 3KW Max

Product Categories

Shenzhen Anzewei Technology Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : OTW

Model Number : SMA-KE-14.5

Place of Origin : China

MOQ : 50pcs

Price : 0.05-0.39

Payment Terms : T/T, Western Union

Supply Ability : Above US$100 Million

Delivery Time : 7-10working days after receiving the payment

Brand : OTW

Description : Female PCB mount Connector

Material : Brass

Plating : GOLD

Working Voltage : 2700V max

Impedance : 50Ω

Contact Now

Stable and Durable Attachment for High Reliability and Long Life

Product descriptions from the supplier

Application:

● PCB Mounting Wifi Antenna Connector

● RF signal connection

Features:

● Enhanced electrical conductivity ● Oxidation resistance, corrosion resistance, environmental protection and safety

● Brass/Gold plating ● Stable performance and strong durability ● High reliability, long life

Product performance
Model	SMA-KE-14.5
Vibration	100m/s2 (10~500Hz)
Impedance	50 OHM
Frequency Range	DC – 11GHz
Working Voltage	2700V max
Break-down Voltage	4000V rms @ sea level
Contact resistance	≤0.4 OHM @ inner contact ≤1.5 OHM @ outer contact
Average power	3KW max
Insulation resistance	≥10000M OHM
VSWR	≤ 1.10
Durability (mating)	≥500 (cycles)
Temperature range	-40~+85°C
Material	Brass

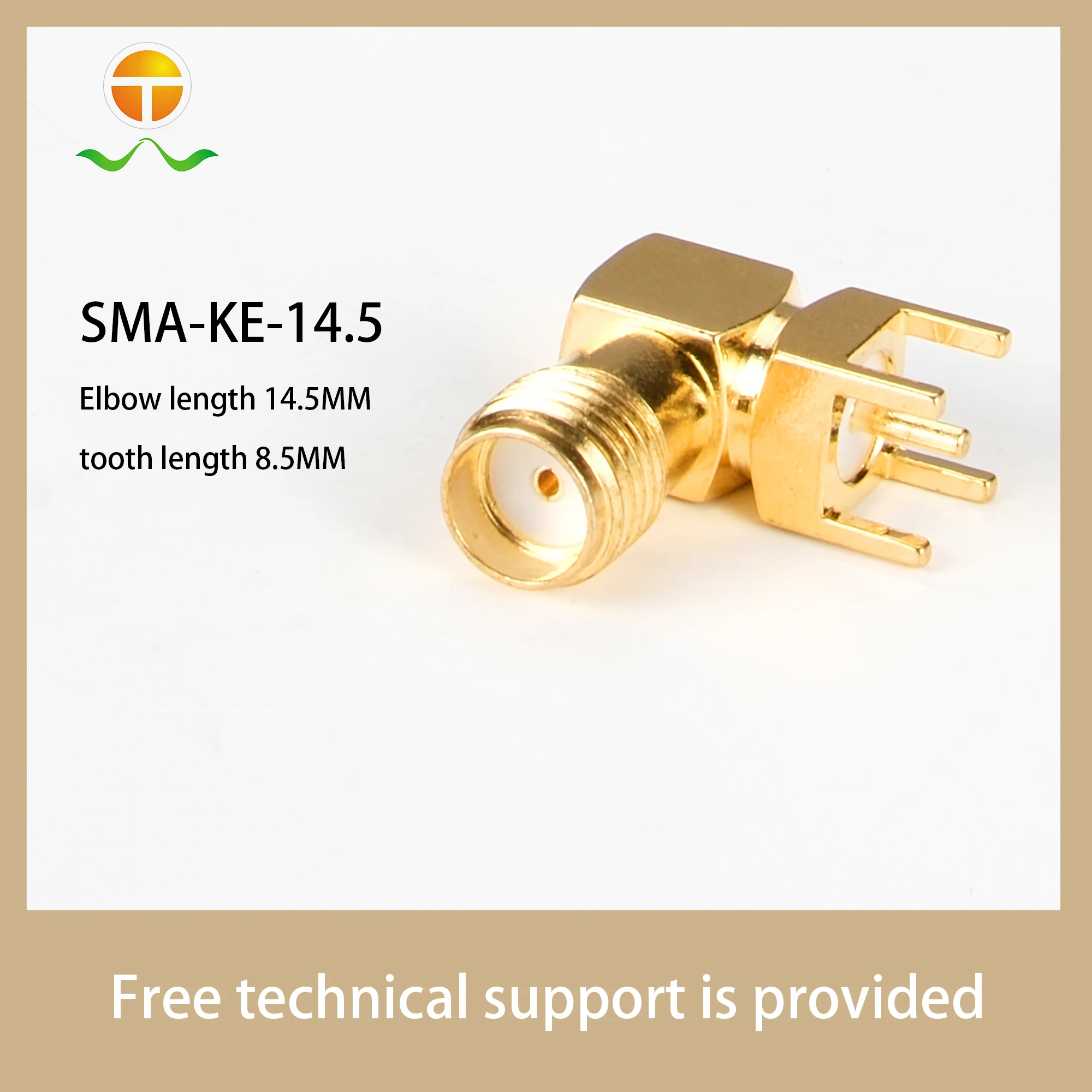

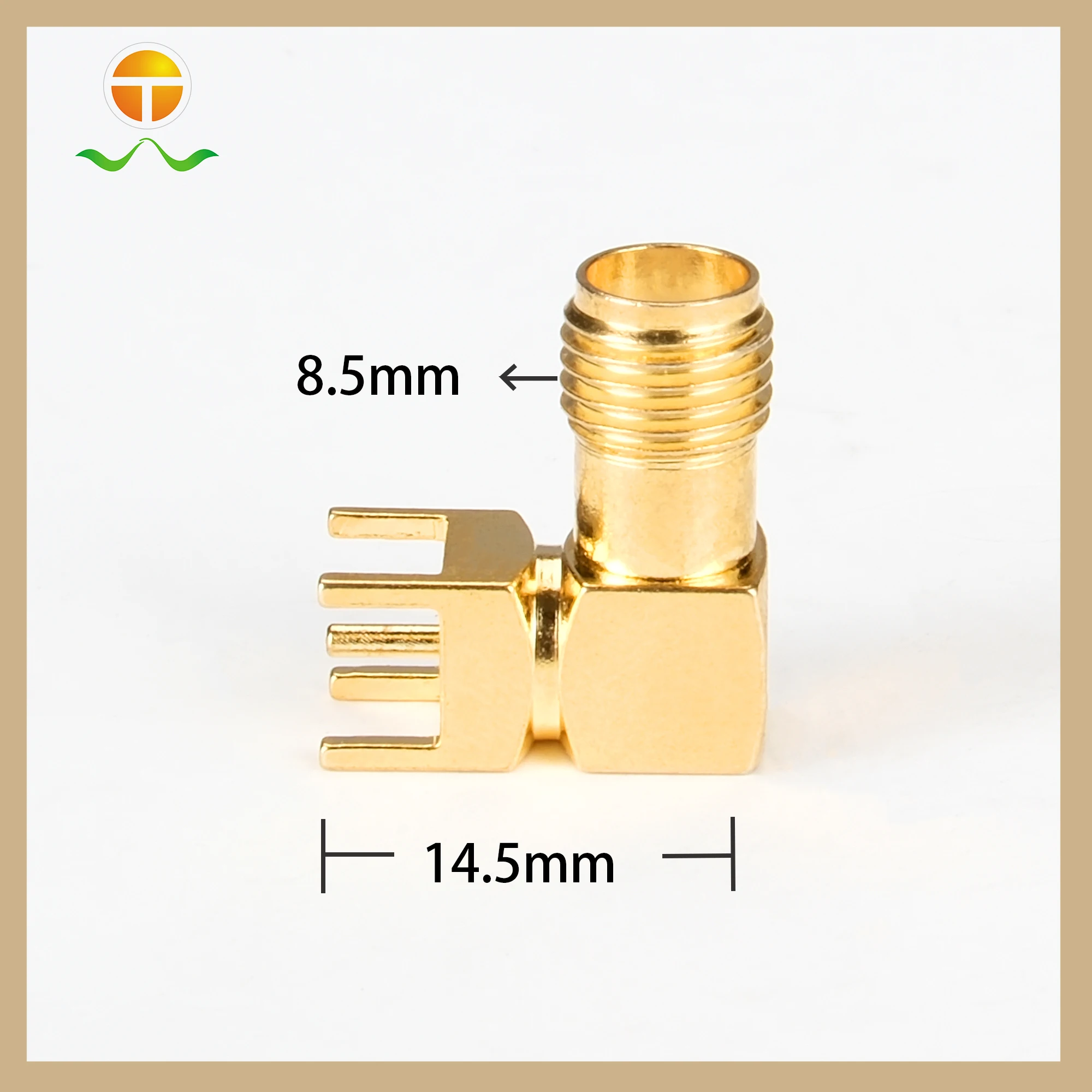

Size	Leg length 14.5MM Teeth length 8.5MM 1.7MM spacing
